Static Mixers

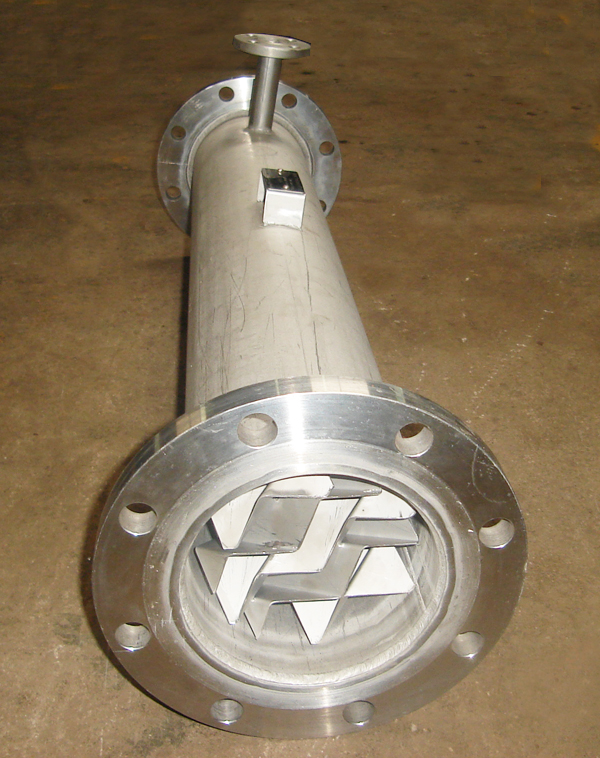

Chemsys Static Mixers are in-line units with no moving parts. The product consists of stationary mixing elements inserted in a length pipe. Each element is built up from corrugated plates forming open, intersecting channels. In these channels fluid flow is split into subflows, which are repeatedly changed in direction & reunited, thereby achieving intermixing in the radial direction. This results in homogeneity of concentration, temperature & velocity over whole flow cross section.
Static mixers can be designed for the mixing of –
• Liquid <=> Liquid
• Gas <=> Gas
• Gas <=> Liquid
Key benefits
• Highly efficient mixing.
• On-line mixing device.
• No moving parts; Maintenance free operation.
• Low investment costs.
• Compact system; Minimal space requirement.
• Low energy cost.
• Ease of installation & running costs.
Applications
• Mixing of components of wide viscosity/density difference.
• Dispersion of poor mixing liquids-smaller droplet size.
• Mixing of reactants in plug flow reactor.
• Dilution of strong acids & basis.
• Blending of additives.
• Addition of additives & inhibitors in process streams.
• Absorption of gases & rapid reactions in straight-through reactors.
